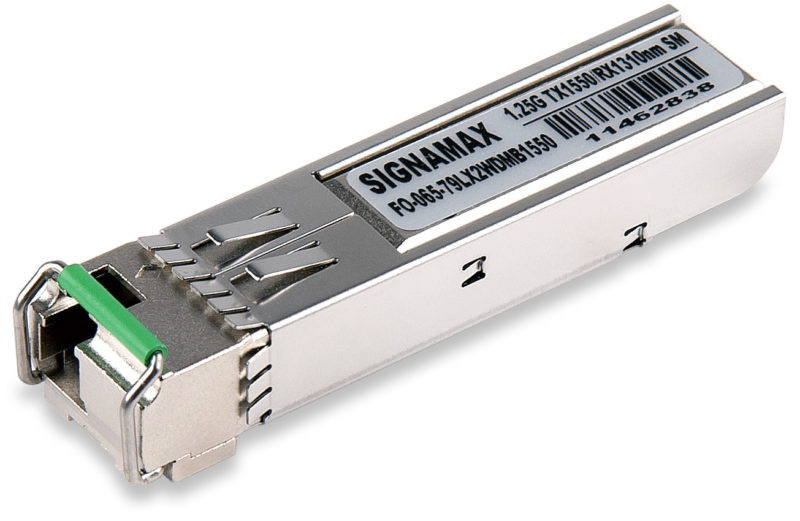

Signamax 065-79LX2WDMB1550 WDM 1.25 Gbps SFP Module Tx: 1550 nm / Rx: 1310 nm – SM/LC Simplex, 20 km
$255.30
Description
Signamax 065-79LX2WDMB1550 WDM 1.25 Gbps SFP Module Tx: 1550 nm / Rx: 1310 nm – SM/LC Simplex, 20 km
he Signamax 065-79LX2WDMx1550 series models are Small Form-factor Pluggable (SFP) multimode fiber modules that support Gigabit Ethernet or SONET OC-12 over a single strand of singlemode fiber cable at distances up to 20 kilometers. There are two types of models in this series: one transmits at 1310 nm and receives at 1550 nm (model 065-79LXnWDMA1550), and the other transmits at 1550 nm and receives at 1310 nm (model 065-79LXnWDMB1550). These modules are designed to be used in pairs facing each other across a single stand of singlemode fiber. They are a cost-effective method of providing changeable Gigabit Ethernet or SONET OC-12 single-fiber singlemode interfaces to switches and media converters equipped with a standard SFP port.
- RoHS compliant
- Meets the SFP Multi-Source Agreement (MSA)
- Up to 20 Km link distance
- Hot pluggable
- Metal enclosure for low EMI performance
- Low power dissipation
- Metro Access Rings
- Point-to-Point networking
- 1x Fiber Channel
- Gigabit Ethernet
- Suitable for Fast Ethernet and OC-12 transmission
Part Number | TX/RX Spectrum |
Light Source |
Link Power Budget |
Typical Max. Distance** |
Supply Voltage |
Operating Temp. |
065-79LX2WDMA1550 (Blue clasp) |
Tx: 1310 nm Rx: 1550 nm |
FP Laser | 16 dBm | 20 km | 3.3V | 0 ~ 70 °C |
065-79LX2WDMB1550 (Green clasp) |
Tx: 1550 nm Rx: 1310 nm |
DFB Laser | 16 dBm | 20 km | 3.3V | 0 ~ 70 °C |
** Maximum distances attainable on singlemode fiber circuits are dependent upon a circuit’s conditions; i.e., the number of splices and patch panels and the number of bends in the circuit path. For comparison with competing products, please use the Link Power Budget for meaningful comparisons.
