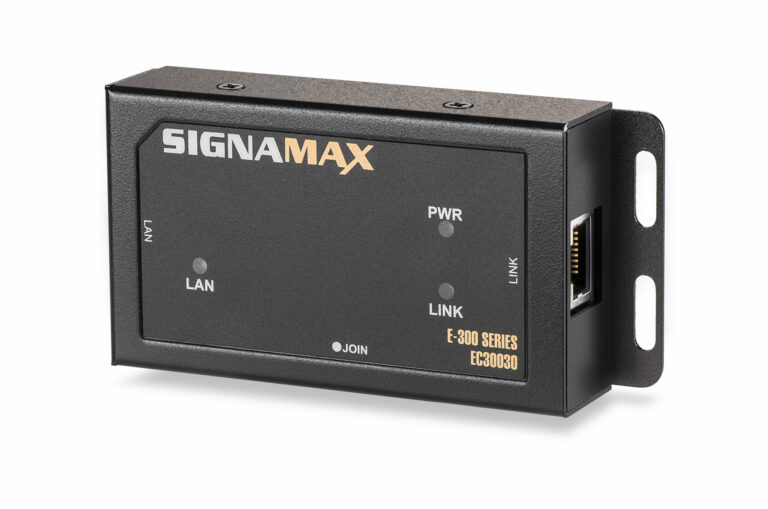

Signamax EC30030 E-300 Long Range Ethernet & PoE, Local AC Powered
$237.65
Description
Signamax EC30030 E-300 Long Range Ethernet & PoE, Local AC Powered
- PoE up to 4,000ft (1200m) over Cat6 cables
- Provide up to 57W to the powered device
- Reuse existing telephone cable
- Interoperable with indoor and outdoor models
- Zero touch Plug and Play connectivity
- 5 year hardware warranty & support at no additional cost
- Paired with EC30130 or EI30130
- PORTS
RJ45, RJ45,
- ROLE
Local
- PERFORMANCE
Supports 10K Jumbo Frames
Wirespeed Forwarding
- LAYER 2
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3 Auto-Negotiate
IEEE 802.3x Flow Control
PoE: Support IEEE 802.3af; IEEE802.3at; IEEE 802.3bt
- ELECTRICAL CHARACTERISTICS
Powered: AC Adapter (included)
Power Supply:
Output: 56 V DC
Input: 100 to 240 V AC 50/60 Hz
Power Consumption: 2W Max
- PHYSICAL CHARACTERISTICS
Dimensions: 4.29 x 2.03 x 0.91 in (10.9 x 5.15 x 2.3 cm)
Weight: 0.48 lb (0.22 kg)
Housing: IP30
Mounting: Wall mountable (included)
- ENVIRONMENTAL REQUIREMENTS
Operating Temperature: -4 to 140°F (-20 to 60°C)
Storage Temperature: -40 to 185°F (-40 to 85°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)
- CERTIFICATIONS
EMC: CE mark, FCC Part 15 Class A; VCCI Class A
Safety: CE/LVD EN60950-1
- WARRANTY
Five years (Including power supply)
Related products
-

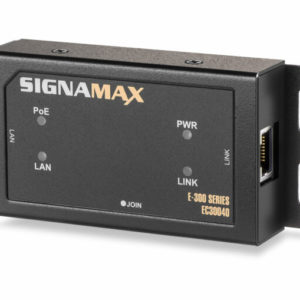

Signamax EC30040 E-300 Long Range Ethernet & PoE, Local PoE Powered
