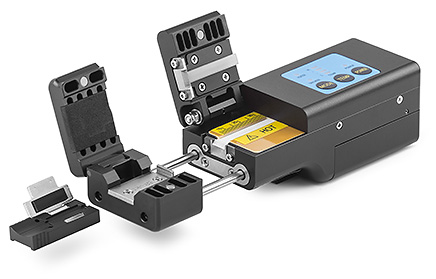

Signamax OFTBS-1 Optical Fiber Thermal Buffer Stripper with 12 Fiber capacity tool holder
$1,520.00
Description
Signamax OFTBS-1 Optical Fiber Thermal Buffer Stripper with 12 Fiber capacity tool holder
- Semi-automatic operation
- Four temperature modes: 158 to 266 °F (70 to 130 °C)
- 1, 4, 8, and 12 fiber capacity
- Five hours of battery life with power saving feature
- Dual modes for operation: end-stripping or mid-span (window) stripping
- Equipped with dual power supplies: internal battery & external power supply
- OPERATION
Semi-automatic: End-stripping; mid-span (window) stripping
Stripped Length: 1.2 in (30 mm) max
Heating Modes: Normal & power-saving (stand-by)
Temperature Modes: 70 °C (158 °F); 90 °C (164 °F); 110 °C (230 °F); 130 °C (266 °F)
Power Supplies:
Lithium battery: 7.4 V, 1620 mA-h
Power adapter: 12 VDC, 2 A
Battery Life: 5 hours, continuous heating
Battery Service Life: 25,000 Min; 50,000 Max
- FIBER TYPE
Fiber Material: Quartz glass
Fiber Diameter: 125 μm
Coating Material: UV-cured resin
Fiber Count:
Single: 250-400 μm
Ribbon: 2-12 fibers
- DIMENSIONS
1.8” D x 5.4” W x 1.7” H (46 mm x 136 mm x 42 mm)
- WEIGHT
9.7 oz (~300 g ) without fiber fixture
- ENVIRONMENTAL CONDITIONS
RH (operation): max non-condensing 85 %
