Description

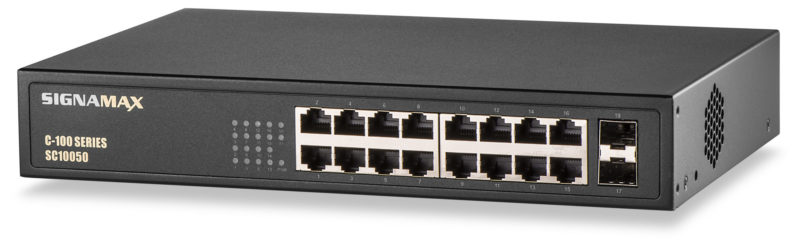

Signamax # SC10050 C-100 16 Port Gigabit PoE+ Switch
- Zero touch Plug and Play connectivity
- Delivers up to 235W PoE with PoE+ support on all ports
- 250W internal power supply
- 2 Gigabit SFP uplink interfaces
- Rugged metal case with clean black finish
- Integrated mounting brackets for rack installation
- PORTS
RJ-45 (Downlink): 16 10/100/1000
Uplink Ports: 2 Gigabit SFP
PoE: 16
- PoE
Budget: 235W
Support IEEE 802.3af/IEEE802.3at on each port
Dynamic Power Allocation
- PERFORMANCE
Switching Capacity: 36Gbps
Forward Rate: 26.8Mpps
4K MAC Addresses
4Mb Packet Buffer
Supports 10K Jumbo Frames
Wirespeed Forwarding
- LAYER 2 STANDARDS
IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3 Auto-Negotiation
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
IEEE 802.3az Energy Efficient Ethernet (EEE)
- ELECTRICAL CHARACTERISTICS
Max Power Consumption: 250W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
MTBF: 100K hrs
- PHYSICAL CHARACTERISTICS
Dimensions: 10.6” W x 1.2” D x 1.7” H (26.9 cm x 18.3 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 3.7 lb (1.7 kg)
Fanless
- ENVIRONMENTAL REQUIREMENTS
Operating Temperature: 14 to 131°F (-10 to 55°C)
Storage Temperature: -4 to 158°F (-20 to 70°C)
Operating/Storage Humidity: 5 to 95% (non-condensing)
- CERTIFICATIONS
CE Mark: EN 55022, Class B; FCC Part 15 Class B; VCCI Class B
Safety: CE/LVD EN60950
- WARRANTY
Five years (Including power supply)
