Description

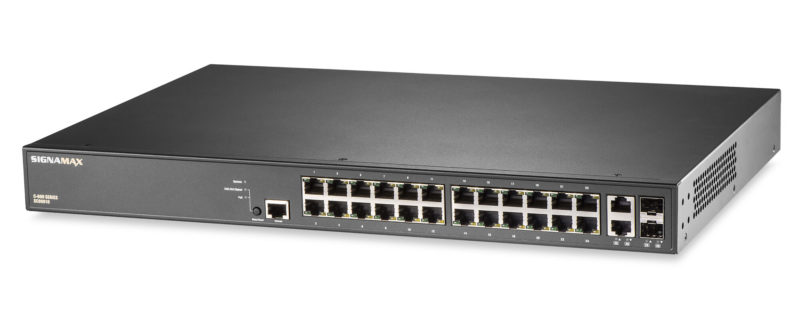

Signamax # SC60010 C-600 24 Port PoE Lighting Managed Switch
- Supports 802.3bt PoE++ up to 90W per port
- Dual hot-swappable power supplies for total PoE Budget of 1640W
- built in Device Management System (DMS)
- Non-blocking switches with up to 52Gbps bandwidth support
- 2 SFP combo uplink interfaces
- Static IP routing & DHCP Server
- 8 dedicated QoS queues
- 5 year hardware warranty & support at no additional cost
- PORTS
RJ-45 (Downlink): 24 10/100/1000
SFP+ Uplink Ports: 4
PoE Ports: 24
- PoE
PoE Budget: 820W (1640W with secondary AP50030)
Support IEEE 802.3af/IEEE802.3at/IEEE 802.3bt on each port
Dynamic Power Allocation
PoE Scheduling
Auto-checking
- PERFORMANCE
Switching Capacity: 52
Forward Rate: 38.68Mpps
MAC Address Table: Up to 8K
Supports 10K Jumbo Frames
Wirespeed forwarding
IPv4/IPv6 Dual Protocol Stack
- SECURITY
DDOS Protection
Port Isolation
Storm Control
Broadcast/Multicast/Unknown Storm Control
Up to 512 Access Control Lists (ACL) based on L2/L3/L4
Port Security
AAA (IEEE 802.1X RADIUS/TACACS+)
IP Source Guard
DHCP Snooping
Encrypt switch access with SSH and SSL
- LAYER 3 STANDARDS
Static routes
DHCP v4/v6 Client / DHCP Relay / DHCP Server
- LAYER 2 STANDARDS
SFP ports support IEEE 802.3u (100FX), 802.3z (1000SX/LX/LHX/ZX)
IEEE 802.3x Flow Control
Spanning Tree:
IEEE 802.1D Spanning Tree Protocol (STP),
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP),
IEEE 802.1s Multiple Rapid Spanning Tree Protocol (MSTP,64 instances)
Loopback Detection
BPDU Filter/Guard
Root Guard
Up to 4094 IEEE 802.1Q (802.3ac) Vlans:
Port-Based/MAC-Based/Protocol-Based(IEEE 802.1v)
Guest VLAN
Auto Voice VLAN
Dynamic VLAN Assignment
GARP VLAN Registration Protocol (GVRP)
802.3ad Link Aggregation (static and LACP)
Multicast:
IGMP v1/v2/v3 snooping
IGMP Queries
IGMP Immediate leave
MLD v1/v2 Snooping
IEEE 802.1AB LLDP/LLDP-MED
IEEE 802.3az Energy Efficient Ethernet
Q-in-Q
- MANAGEMENT
Web-based Graphical User Interface (GUI)
Industry-standard CLI (Telnet/SSH) with context-sensitive help
Console management port on the front panel for ease of access
Comprehensive SNMP MIB support for standards based device management
Dual Image/Configuration
RMON (groups 1,2,3 and 9)
NTP/SNTP
SNMP v1/v2/v3
- QoS
Rate Limiting (Ingress/Egress Port-Based)
Priority Queues Schedule (WRR)
Port-Based QoS
IPv4/IPv6 DSCP
DiffServ
Auto VOIP
8 HW Queues per port for 802.1p priority tagging
Policy based dynamic QoS
- DIAGNOSTIC TOOLS
Diag LED
Cable Test
Digital Diagnostic Monitoring (DDM) on SFP Ports
Ping polling for IPv4 and IPv6
Port Mirror (One to One, One to Many)
Remote Mirror
Event/Error Log/Syslog/SMTP Alerts
SFlow
- ELECTRICAL CHARACTERISTICS
Max Power Consumption: 1840W
Power Supply AC Input: 100 – 240 V AC, 50/60 Hz
- PHYSICAL CHARACTERISTICS
Dimensions: 17.4” W x 11.81” D x 1.7” H (44 cm x 44 cm x 4.4 cm)
19 in rack mounting hardware included
Weight: 12.45 lb (5.6 kg)
- ENVIRONMENTAL REQUIREMENTS
Operating Temperature: 32 to 113°F (0 to 45°C)
Storage Temperature: -40 to 158°F (-40 to 70°C)
Operating/Storage Humidity: 10 to 95% (non-condensing)
- CERTIFICATIONS
Emissions: CE Mark: EN 55022, Class A; FCC Part 15 Class A
Immunity: IEC 61000-3-3, 61000-4-2/3/4/5/6/11
- WARRANTY
Five years (Including power supply)
