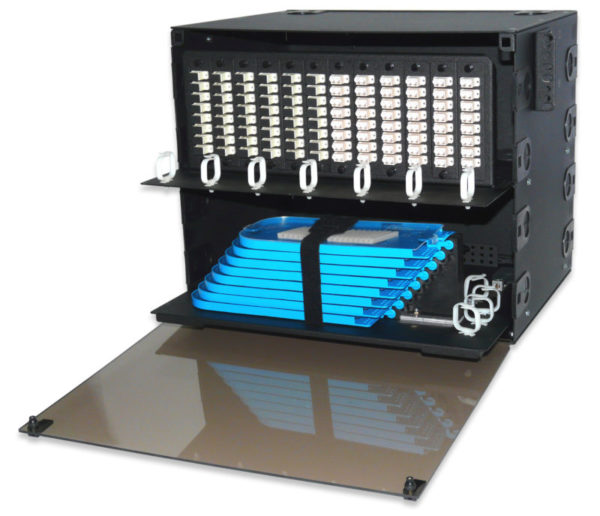

Signamax UFD12-B 72- to 288-Fiber Optical Fiber Distribution Enclosure, Accepts 12 Adapter Plates and 8 (24-Fiber) Splice Trays Dimensions: 14″H x 19″W x 14″D
$489.00
Description
Signamax UFD12-B 72- to 288-Fiber Optical Fiber Distribution Enclosure, Accepts 12 Adapter Plates and 8 (24-Fiber) Splice Trays Dimensions: 14″H x 19″W x 14″D
- Meets EIA/ECA-310-E mounting standards for 19 & 23 inches
- Transparent plastic front & solid rear panel are hinged for easy access
- Sliding tray with built-in latch-lock for effortless installation
- Fiber spools to ensure proper fiber slack management
- Rubber grommets protect against cable kinks & dust penetration
- Interchangeable modular
- adapter plates mount easily by means of plunger locks
- CONSTRUCTION
Die steel, 16 gauge
High-impact black epoxy-powder anticorrosive paint
Clear plastic hinged front cover
- DIMENSIONS
RMS 4
Height 177.8 mm (7 in)
Width 482.6 mm (19 in)
Depth 355.6 mm (14 in)
- WARRANTY
5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
