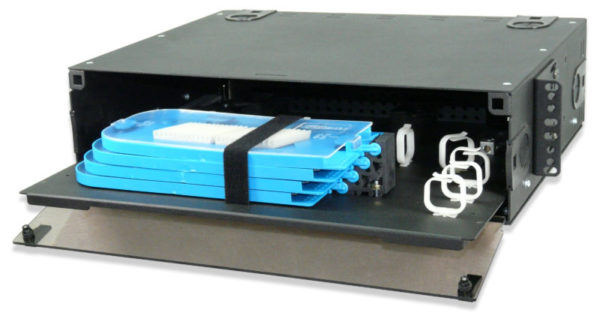

Signamax UFS4-B 96-Fiber Slide-Out Splice Tray Enclosure, Accepts 4 Splice Trays (Includes one FST-24P splice tray) Dimensions: 5.25″H x 19″W x 14″D

$260.00

Description

Signamax UFS4-B 96-Fiber Slide-Out Splice Tray Enclosure, Accepts 4 Splice Trays (Includes one FST-24P splice tray) Dimensions: 5.25″H x 19″W x 14″D

  • Meets EIA/ECA-310-E mounting standards for 19 & 23 inches
  • Designed for splice tray consolidation
  • Transparent plastic front & solid rear panel are hinged for easy access
  • Sliding tray with built-in latch-lock for effortless installation
  • Rubber grommets protect against cable kinks and dust penetration
  • CONSTRUCTION

Die steel
High-impact black epoxy-powder anticorrosive paint
Clear plastic hinged front cover

  • DIMENSIONS

RMS 3
Height 133.35 mm (5.25 in)
Width 482.6 mm (19 in)
Depth 355.6 mm (14 in)

  • WARRANTY

5-year limited component warranty
10-year Signamax Link/Channel Warranty
15-year Signamax Extended Component Warranty
25-year Signamax Cabling System Warranty
